12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH

Name: 12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH
Brand: JQ/OEM/Customize
Price: 1 USD

Quality 12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH for sale

Brand Name : JQ/OEM/Customize

Model Number : GYFTY-48B1.3

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30km per day

Delivery Time : 5-8 work days

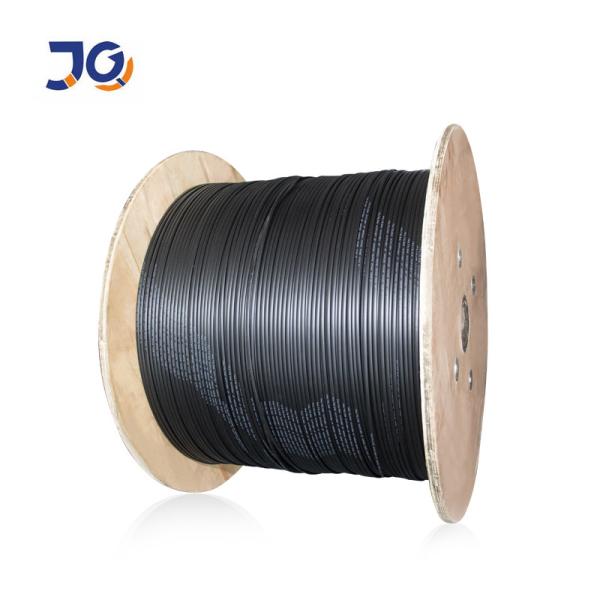

Packaging Details : wooden drum

Fiber count : 4-144 Cores

Fiber type : Single mode G652D/G657A1

Jacket : PE,MDPE,LSZH,PVC,HDPE

Color : Black or orange or Customized

Product name : Non-armored Duct Fiber Optic Cable

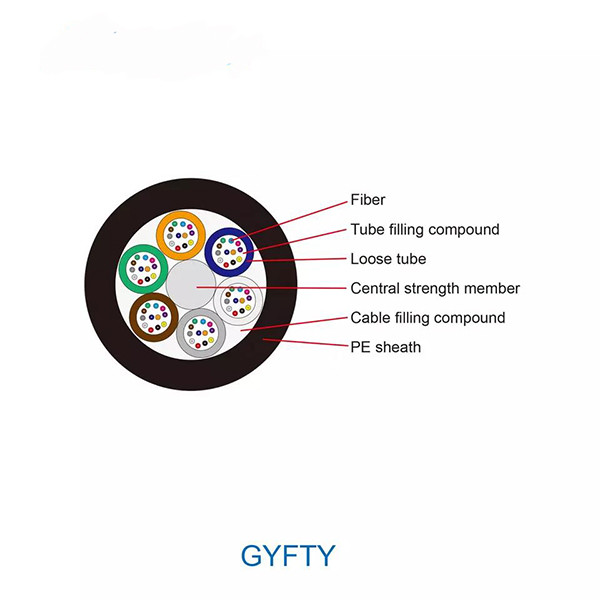

Structure : Stranding Loose tube SZ

Installation : Aerial & Duct

Strenght member : FRP

Contact Now

2-144 Cores GYFTY Non-armored Duct Fiber Optic Cable With Factory Price, Support OEM.

Key Features

Small diameter lightweight and soft for easy installation
Optimized structure with strong water blocking performance
FRP non metallic central strength member for high tensile strength
Excellent resistance to electromagnetic interference
Jelly filled loose tube design with PP filler for fiber protection
Water blocking tape and PE outer sheath for outdoor durability

Application

Aerial installation
Duct installation

Product Characteristics

Excellent mechanical strength and temperature stability
Reliable fiber protection for long term outdoor deployment
PE sheath provides strong UV resistance crush resistance and flexibility

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Cable Parameters

Items		Specifications
Fiber Count		48fibers
Colored Coating Fiber	Dimension	250μm+15μm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	2.0mm±0.2mm
Strength Member	Material	FRP or steel wire
Outer Jacket	Dimension	12.0mm±0.2mm
	Material	PE
	Color	Black

12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH

Cable Mark: Company logo GYFTY-48B1.3 2024 0000M

Welcome to your Inquiry Welcome to visit our factory!
