ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable

Name: ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable
Brand: JQ or OEM/Customize
Price: 1 USD

Quality ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable for sale

Brand Name : JQ or OEM/Customize

Model Number : ADSS-4C/12FC/24C/48C/96C/144C

Certification : ISO9001 CE ROHS Rohs FCC

Place of Origin : Guangdong China

MOQ : 10km

Payment Terms : T/T, Western Union,Alipay, MoneyGram, L/C

Supply Ability : 21500KM per month

Delivery Time : about 10 days

Packaging Details : Wooden drum or Iron drum

Application : Outdoor aerial installation

fiber counts : 4-144cores

span : 100m /200 m /300m or Customized

fiber brand : YOFC/FiberHome/Corning

Jacket Material : HDPE/ MDPE/ PE

strength number : FRP, Kevlar Aramid Yarn

structure : Stranded Loose Tube

jacket color : Black yellow bule or Customized

Contact Now

Factory Price: Single Mode ADSS Optical Fiber Cable with Aramid Yarn Strength

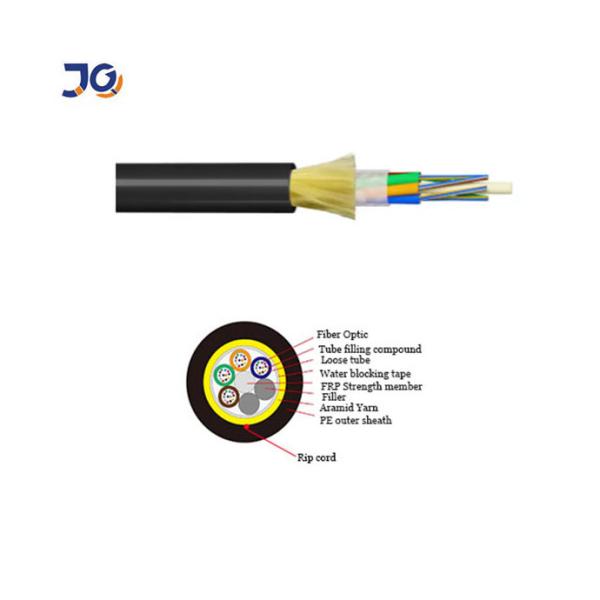

Structure & Design

Compact, stranded core with optical fibers in loose tubes filled with water-resistant gel.
Central FRP (Fiber Reinforced Plastic) strength member for stability.
Aramid yarn reinforcement for tensile strength.
Durable PE or AT outer sheath.

Key Features

Non-Conductive: Safe for live-line installation.
Easy Installation: Self-supporting, no messenger wire needed.
High Mechanical Strength: Resistant to external loads and harsh weather.
Optimized Performance: Aramid yarn improves tensile and temperature stability.
Customizable: Can be tailored for different spans and applications.

Applications

PE Sheath: Overhead power lines <110kV.
AT Sheath: Overhead power lines ≥110kV to prevent electrical tracking.

Standards Compliance

Manufactured to meet IEEE P 1222 and IEC 60794-1 standards.

Structure and Technical Specifications

1. ADSS single jacket

fiber count	structure	fiber per tube	losse tube diameter (MM)	FRP/pad diameter (mm)	Thickness of outer jacket(mm)	Ref. Outer Diameter (mm)	Ref. Weight (kg/km)
fiber count	structure	fiber per tube	losse tube diameter (MM)	FRP/pad diameter (mm)	Thickness of outer jacket(mm)	Ref. Outer Diameter (mm)	PE Jacket	AT Jacket
4	1+5	4	1.9	2.0/2.0	1.7±0.1	9.8	80	90
6	1+5	6	1.9	2.0/2.0	1.7±0.1	9.8	80	90
8	1+5	4	1.9	2.0/2.0	1.7±0.1	9.8	80	90
12	1+5	6	1.9	2.0/2.0	1.7±0.1	9.8	80	90
24	1+5	6	2.0	2.0/2.0	1.7±0.1	9.8	85	95
48	1+5	12	2.0	2.0/2.0	1.7±0.1	10.0	88	98
72	1+6	12	2.2	2.0/2.0	1.7±0.1	10.5	98	108
96	1+8	12	2.2	2.0/3.4	1.7±0.1	12.0	122	135
144	1+12	12	2.2	3.0/7.2	1.7±0.1	15.2	176	189

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

2. ADSS double jacket

fiber count	structure	fiber per tube	losse tube diameter (MM)	FRP/pad diameter (mm)	Thickness of outer jacket(mm)	Ref. Outer Diameter (mm)	Ref. Weight (kg/km)
fiber count	structure	fiber per tube	losse tube diameter (MM)	FRP/pad diameter (mm)	Thickness of outer jacket(mm)	Ref. Outer Diameter (mm)	PE Jacket	AT Jacket
4	1+5	4	1.9	2.0/2.0	1.7±0.1	12.0	125	135
6	1+5	6	1.9	2.0/2.0	1.7±0.1	12.0	125	135
8	1+5	4	1.9	2.0/2.0	1.7±0.1	12.0	125	135
12	1+5	6	1.9	2.0/2.0	1.7±0.1	12.0	125	135
24	1+5	6	2.0	2.0/2.0	1.7±0.1	12.0	128	138
48	1+5	12	2.0	2.0/2.0	1.7±0.1	12.5	130	140
72	1+6	12	2.2	2.0/2.0	1.7±0.1	13.2	145	155
96	1+8	12	2.2	2.0/3.4	1.7±0.1	14.5	185	195
144	1+12	12	2.2	3.0/7.2	1.7±0.1	16.5	212	228

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

Fiber type	Attenuation (+20℃)				Bandwidth		Optical cable cut-off wavelength
Fiber type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Optical cable cut-off wavelength
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	---

Details picture shows

ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable

single jacket ADSS fiber cable

ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable

double jacket ADSS fiber optic cable

ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable

Packing:

FAQ

Are you a manufacturer or trading company?
We are a professional manufacturer with 10+ years of experience in fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou, and visits are welcome.

How do you ensure quality?
Every fiber is fully tested, with final inspection before shipment. Free samples are available for quality verification.

Do you accept small orders?
Yes, we support small orders for new projects.

What is your delivery time?
Standard delivery is 3–7 business days, depending on quantity.

Do you offer OEM services?
Yes, we can customize products and print your logo.

Are your raw materials certified?
Yes, all materials come from ISO9001 and RoHS certified suppliers.
