Name: Uniloose Tube Steel Tape Armored Gyxtw Cable PE Jacket
Brand: Jiqian/OEM
Price: 1 USD

Brand Name : Jiqian/OEM

Model Number : GYXTW

Certification : CE/ISO9001

Place of Origin : Guangdong, China

MOQ : 1kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 kilometers per month

Delivery Time : 2-4days

Packaging Details : Wooden Drum

Out color : black

Armoured : steel tape

Jacket : PE

loose tube color : at your request

Operating temperature : -40°C~+70°C

Contact Now

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

Cable structure and parameter

Fiber count	Outer diameter	Steel wire diameter	Min.Bending Radius (Dynamic/Static)	Max.Crush Resistance	Weight (approx.)
Fiber count	mm	mm	D	N/100mm²	kg/km
2,4,6,8	8.3	1.0	20/10	3000	66
10,12	9.0	1.0	20/10	3000	82

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Cable bending radius: 10 x cable diameter (static)

20 x cable diameter (dynamic)

Application temperature range

Operating temperature range	-40℃ to +60℃
Storage / Transport temperature range	-40℃ to +60℃
Installation temperature range	-20℃ to +60℃

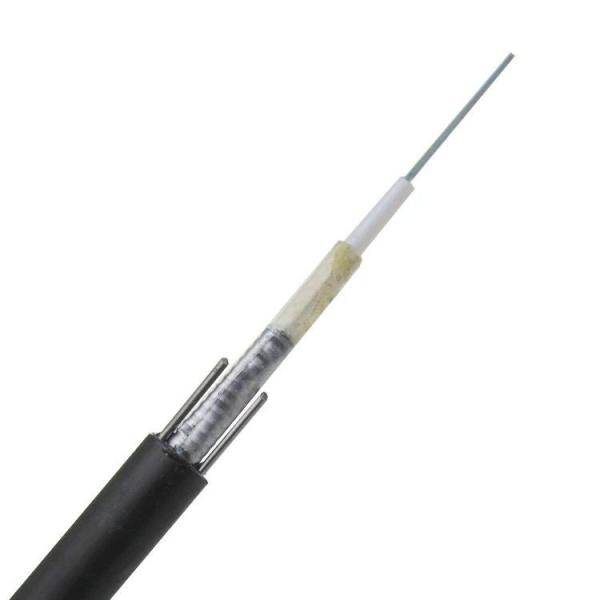

Uniloose Tube Steel Tape Armored Gyxtw Cable PE Jacket

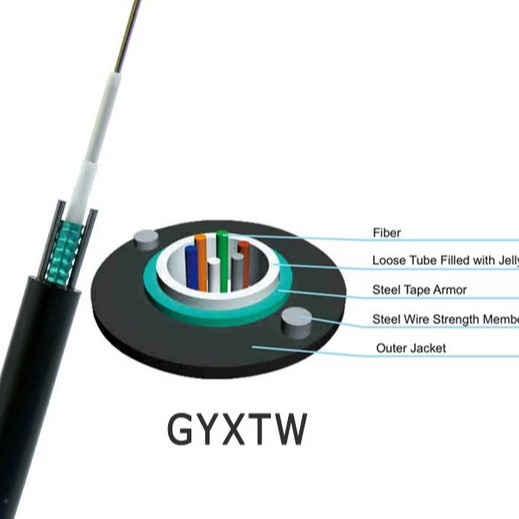

Cable Structure
