Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape

Name: Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape
Brand: jiqian
Price: 1 USD

Quality Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape for sale

Brand Name : jiqian

Model Number : GYTA 6 core

Certification : ISO

Place of Origin : CHINA

MOQ : 1000m

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per 2 day

Delivery Time : 2-4day

Packaging Details : wooden drum

Fiber type : G652D

Oem : Available

Application : duct

Number of conductors : 4

Structure : Stranded loose tube

Operating temperature : -40 ~ +60 C

central strength member : Aluminium Wires

Contact Now

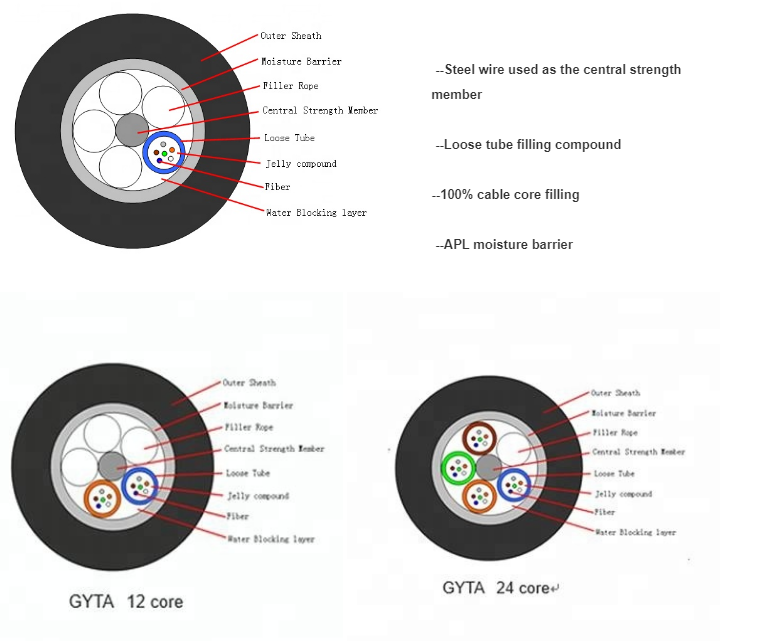

GYTA In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape

Characteristics:

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility

Optical Characteristics
		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	'@850nm			≤3.0 dB/km	≤3.0 dB/km
	'@1300nm			≤1.0 dB/km	≤1.0 dB/km
	'@1310nm	≤0.36 dB/km	≤0.40 dB/km
	'@1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth (Class A)	'@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	'@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Tensile Strength	Long Term (N)	1000
Tensile Strength	Short Term (N)	3000
Crush Resistance	Long Term (N)	1000
Crush Resistance	Short Term (N)	3000
Bending Radius	Static (mm)	10D
Bending Radius	Dynamic (mm)	20D

Fiber Count	Dia (mm)	Weight (kg/km)	Allowable Tensile Strength(N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Dia (mm)	Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2-30	9.5	86	≥1500	≥600	≥1000	≥300
32-60	10.2	99
62-72	10.9	123
74-84	12.2	148
86-96	12.2	148
98-120	14.0	183
122-144	14.5	220
146-216	16.1	229
218-300	18.5	290

Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
